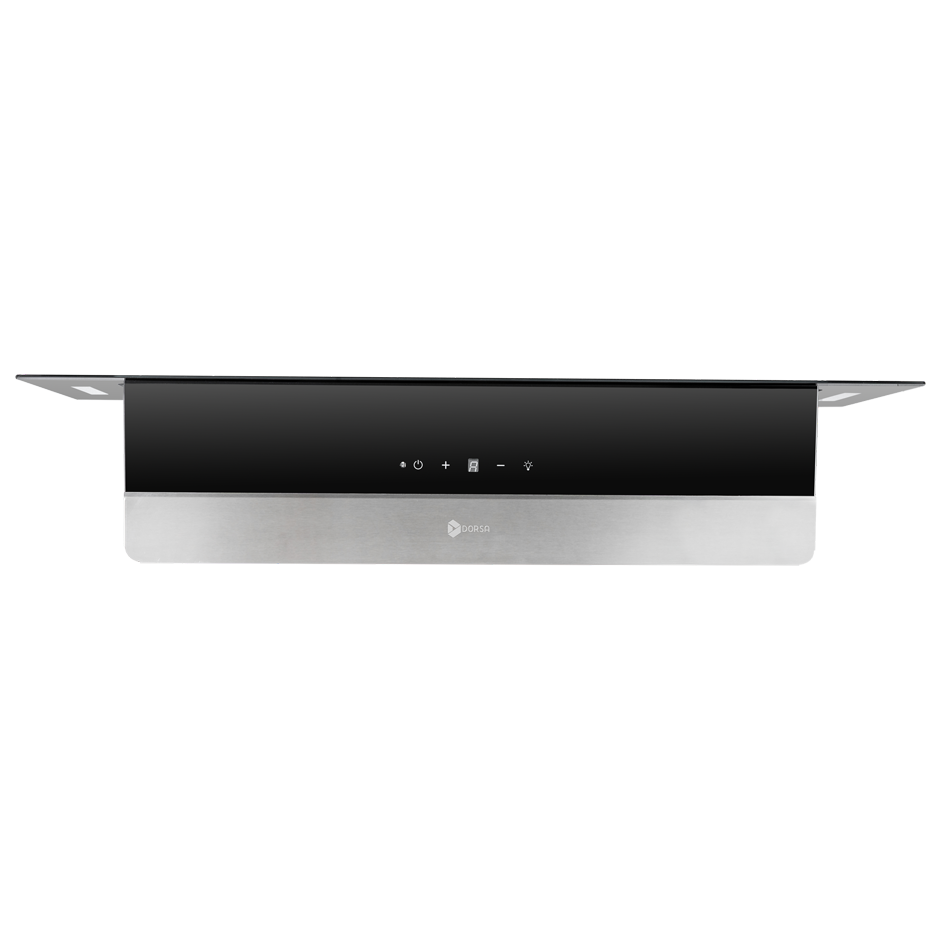

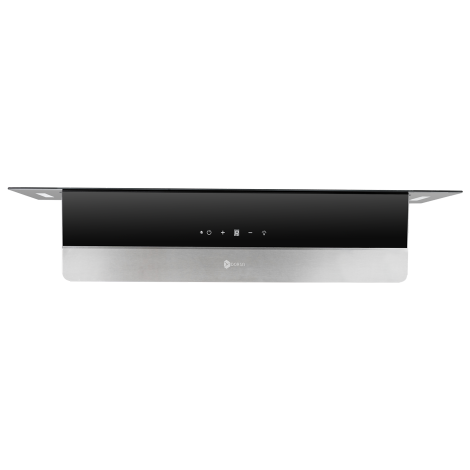

Dorsa DH1417-80 Built-in Hood: High Suction Power, Modern Design

The Dorsa DH1417-80 built-in hood is a professional choice for modern kitchens seeking a stylish, powerful, and quiet integrated hood. With its completely concealed design inside the cabinet, this hood provides a clean and minimalist look to the kitchen space and offers a unique cooking experience with its advanced features.

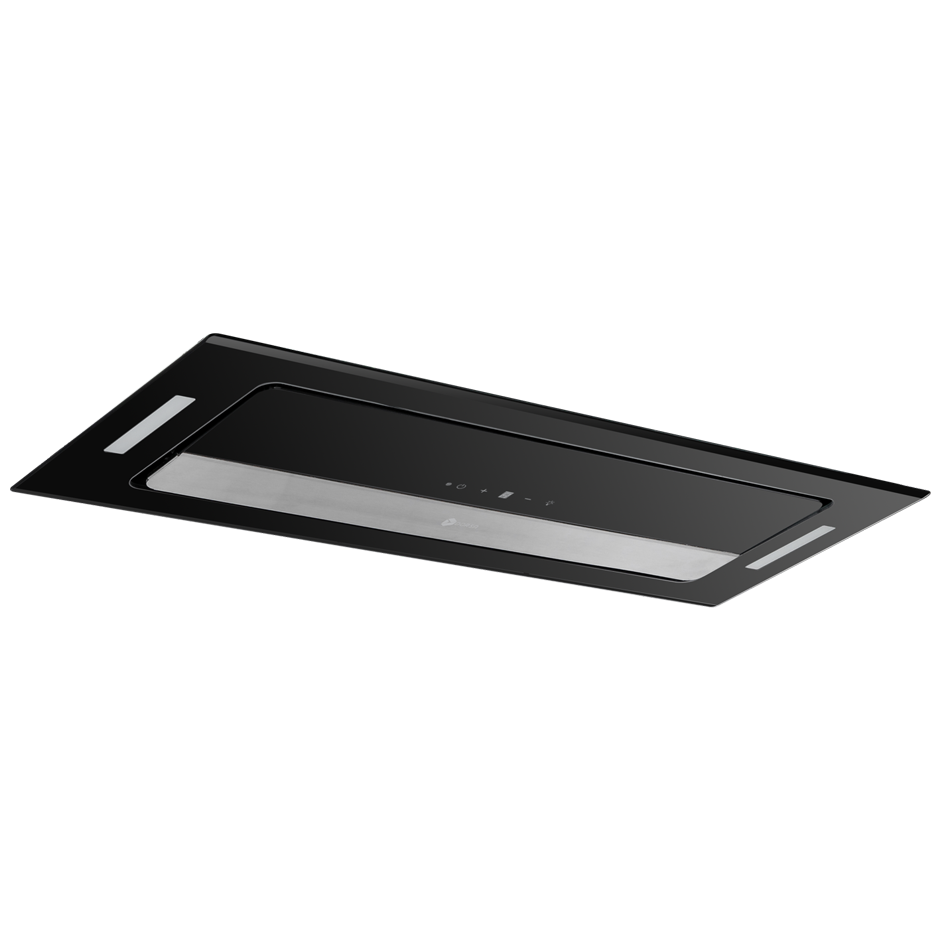

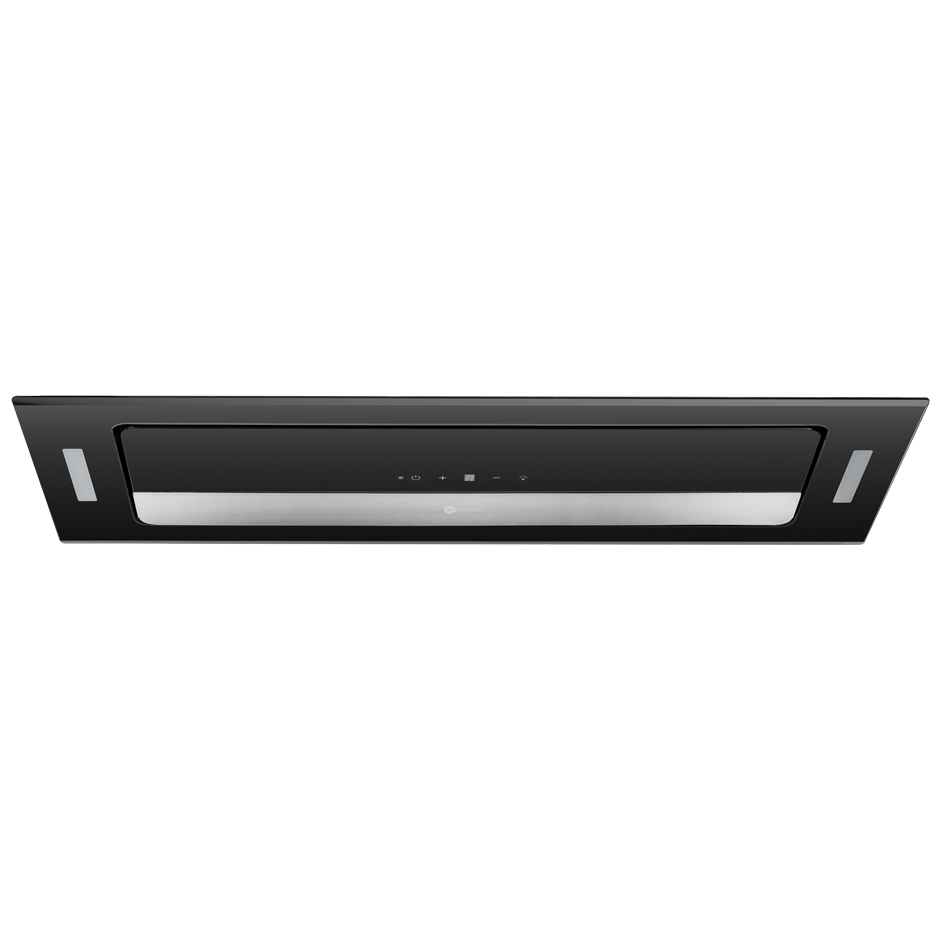

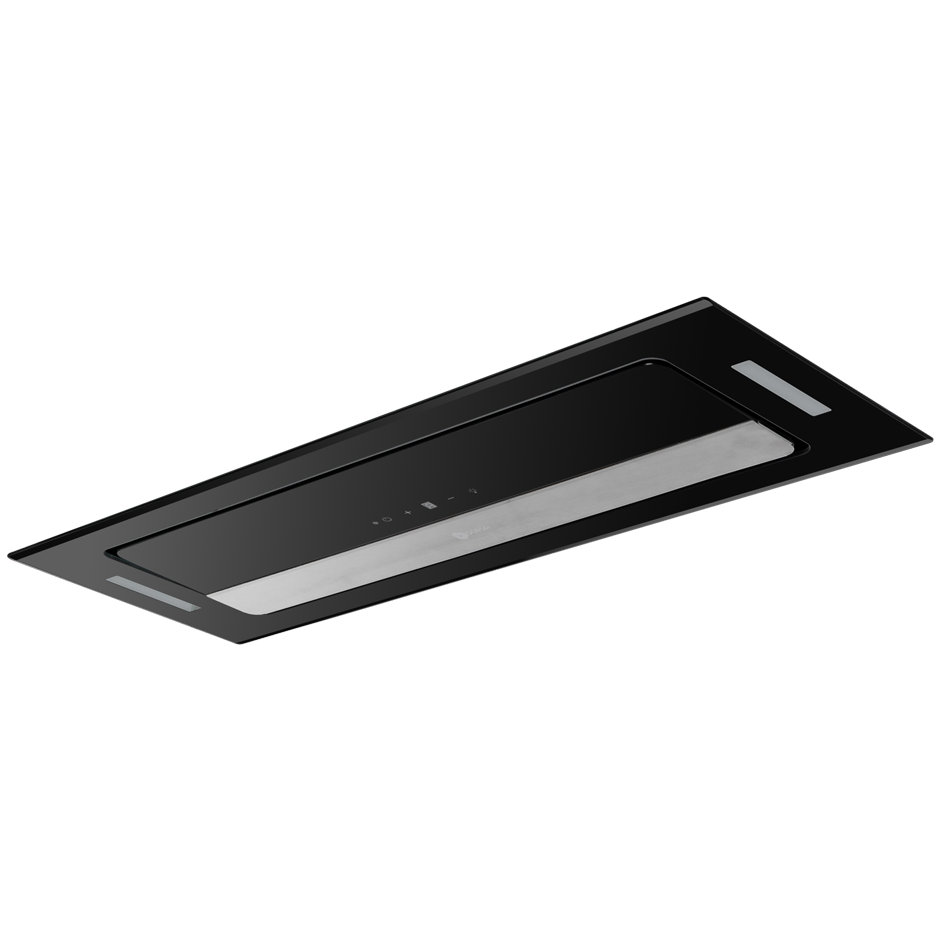

Design of the Dorsa DH1417-80 80cm Built-in Hood

This model, with dimensions of $80\text{ cm}$ length, $29\text{ cm}$ width, and $30\text{ cm}$ height, is designed for easy installation inside a cabinet. The heat and impact-resistant black tempered glass facade, combined with a stainless steel frame, adds a luxurious touch to your kitchen.

Features and Capabilities of the DH1417-80 Built-in Hood

• Installation Type: Built-in (fully concealed inside the cabinet).

• Cabinet Cutout Dimensions: $76.5\text{ cm}\times 26.5\text{ cm}$.

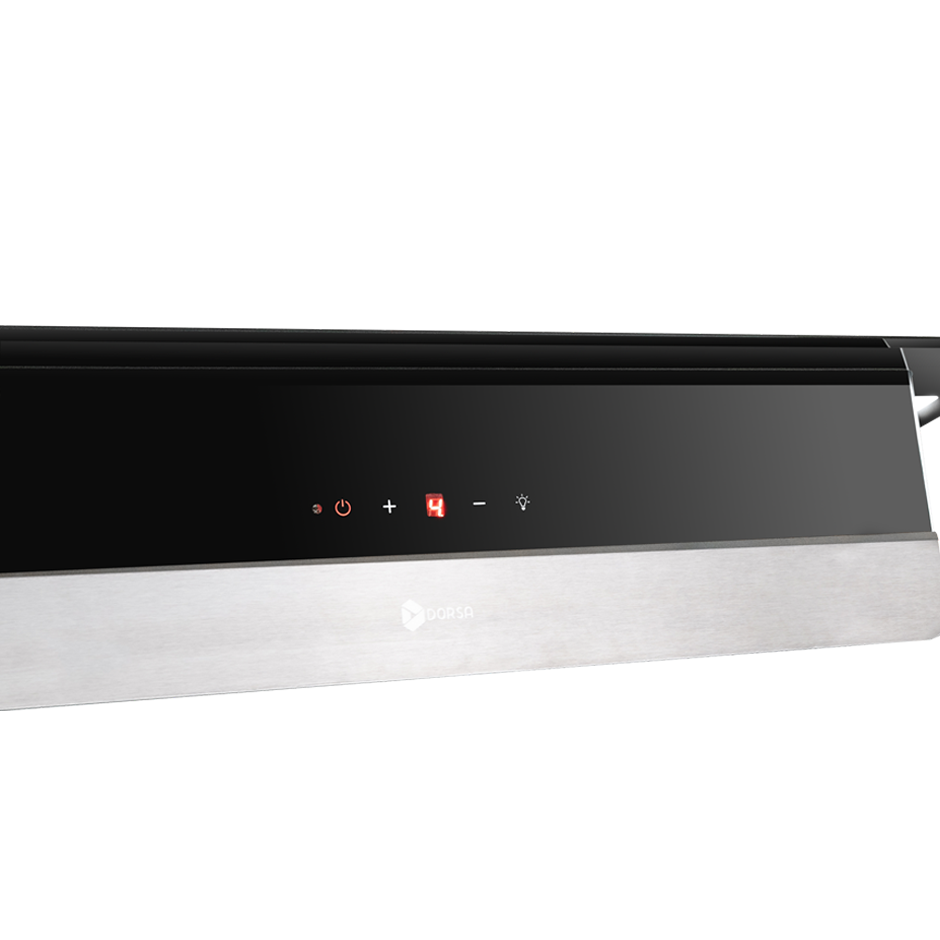

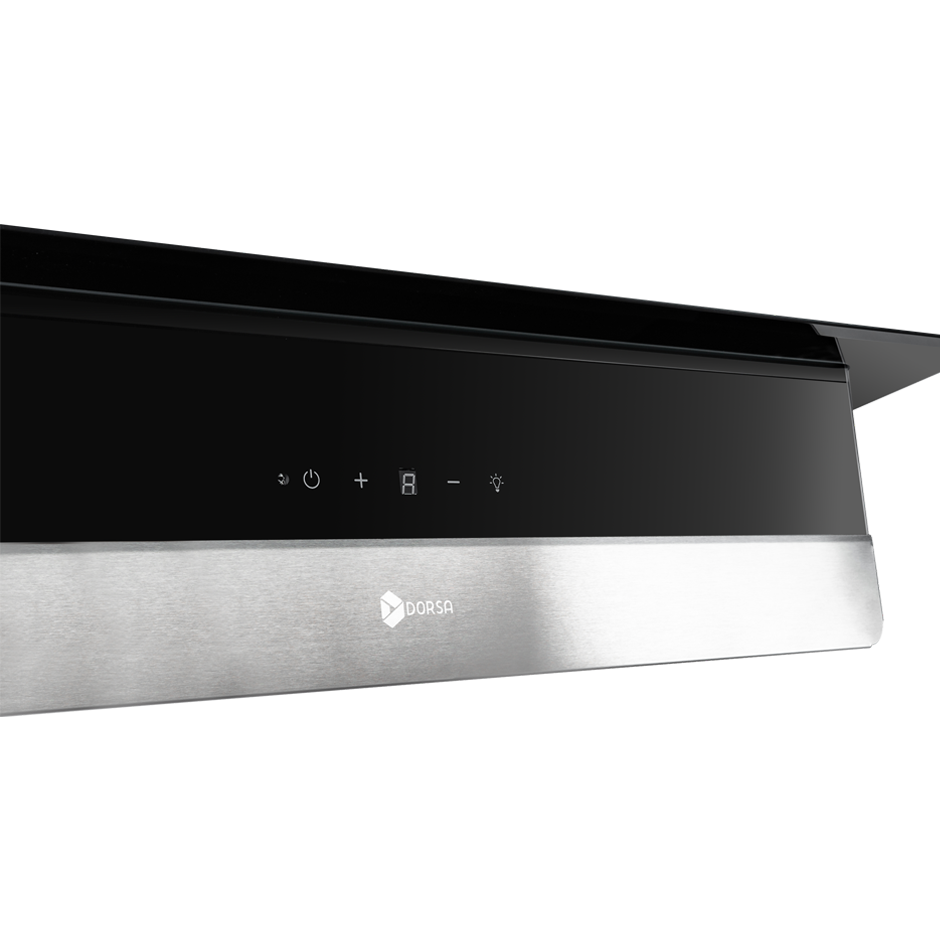

• Control Panel: Touch keys with a seven-segment display.

• Remote Control: Included, for easier use from a distance.

• Motor: Turbo, dual-shaft, 4-speed with a metal casing.

• Motor Safety System: Thermoguard (thermal protection).

• Suction Power: 900 m3/h (suitable for medium to large spaces).

• Noise Level: 45 to 55 dB (low-noise operation).

• Filter: Single-piece, three-layer aluminum filter with dimensions of $16\text{ cm}\times 53\text{ cm}$, washable, magnetic.

• Optimal Lighting: 2 SMD 12 Volt lamps behind the glass panel, providing adequate and low-consumption lighting.

• Door Holder: Magnetic for easy use.

• Body Material: Automotive galvanized, durable and anti-rust.

• Air Outlet: 12 cm diameter.

High Suction Power and Low-Noise Operation

The Dorsa DH1417-80 built-in hood, with its dual-shaft turbo motor and $900{\text{ m}}^3\text{/h}$ suction power, quickly removes steam, smoke, and cooking odors from the kitchen. Despite this high power, its noise level is in the range of 45 to 55 dB, which is considered very quiet compared to many similar hoods.

Washable Filter and Easy Maintenance

The three-layer aluminum filter of this hood is easily detachable from the body and is washable. Its magnetic design makes installation and removal very simple. This feature increases the appliance's lifespan and maintains suction efficiency over the long term.

Maintenance and Washing of the Built-in Hood Filter

• Cleaning Frequency: Clean the filter every 2 to 4 weeks, depending on the amount of cooking.

• Washing Method: Detach the magnetic filter, wash it with warm water and a mild detergent, dry it completely, and reinstall it.

• Monitoring Noise and Suction: Increased noise or reduced suction is usually due to a clogged filter or flue duct; check these two sections first.

• Recommendation: For issues, repairs, and after-sales service, please contact 02143326.

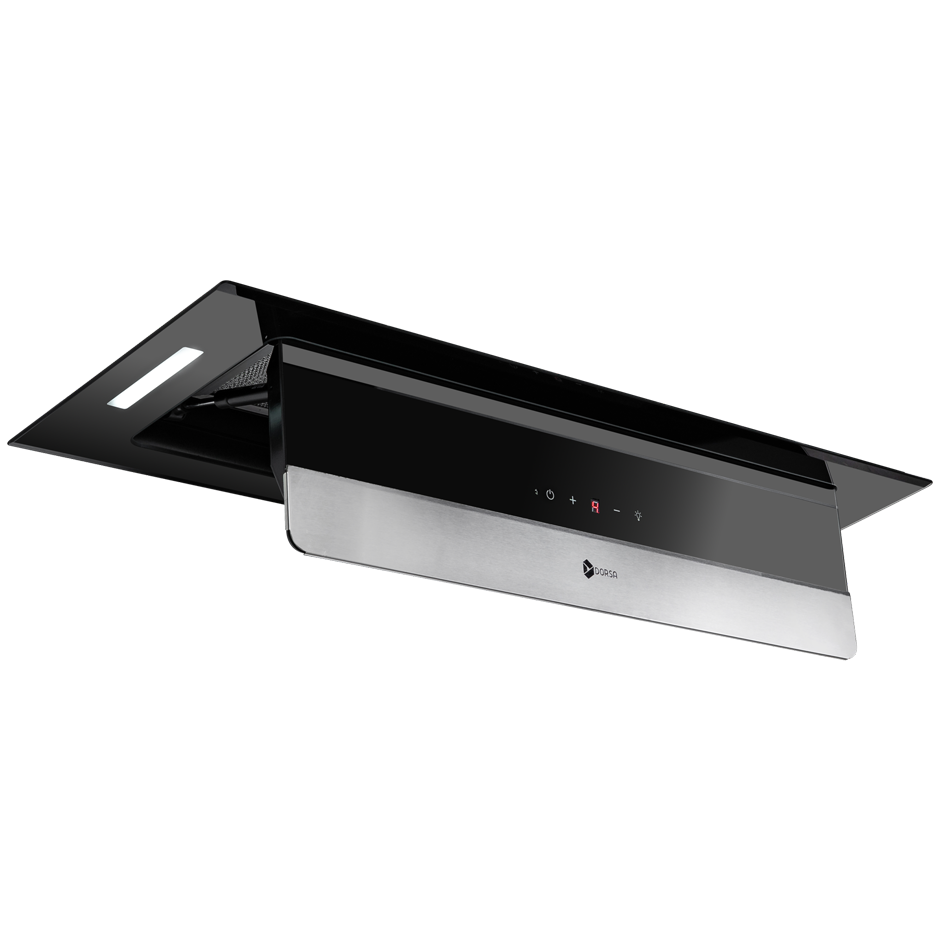

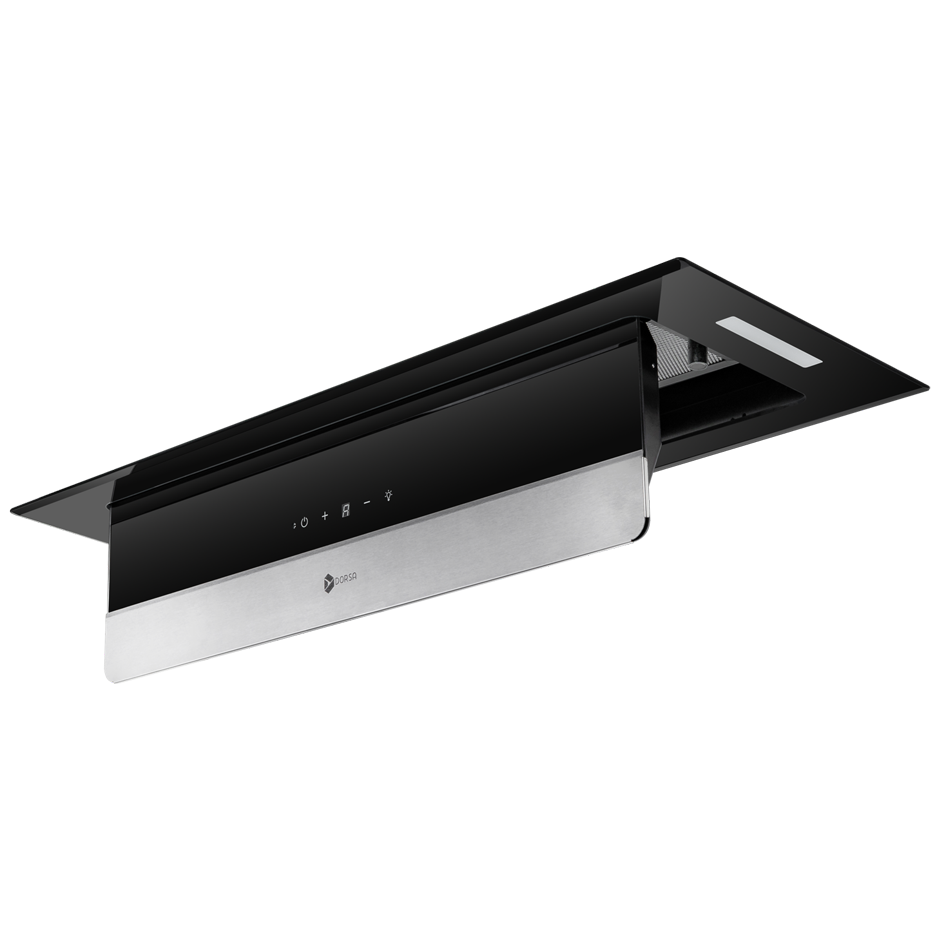

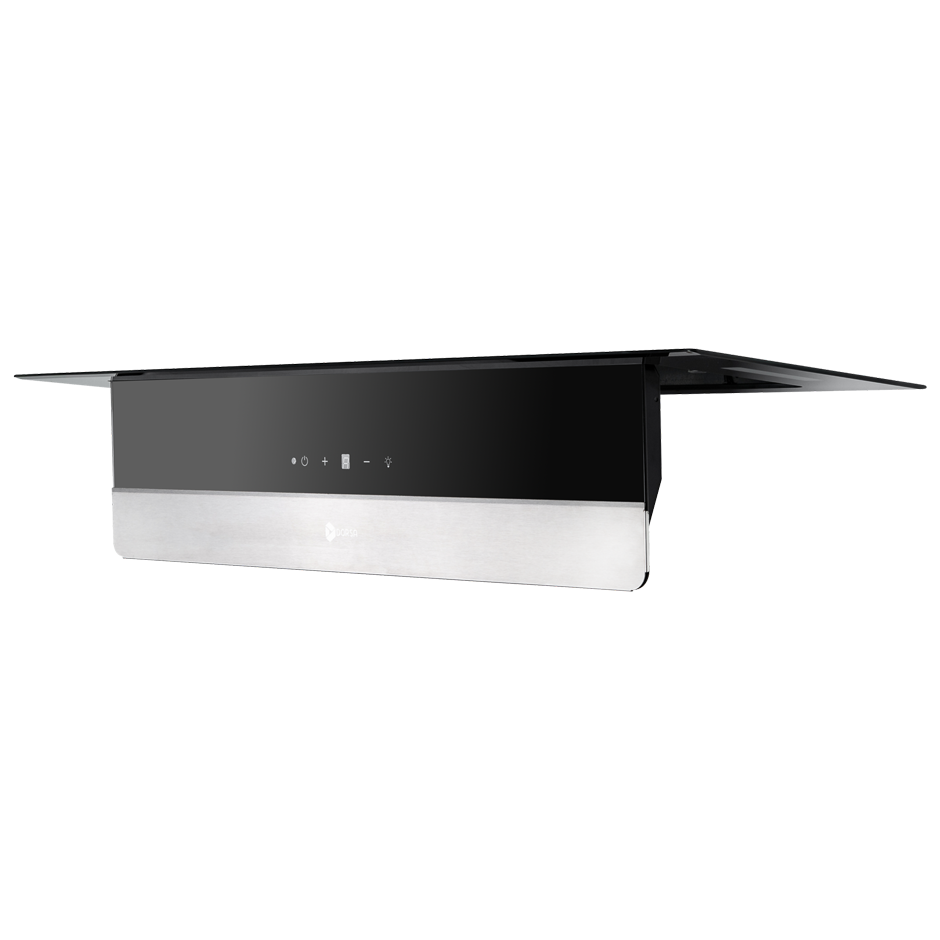

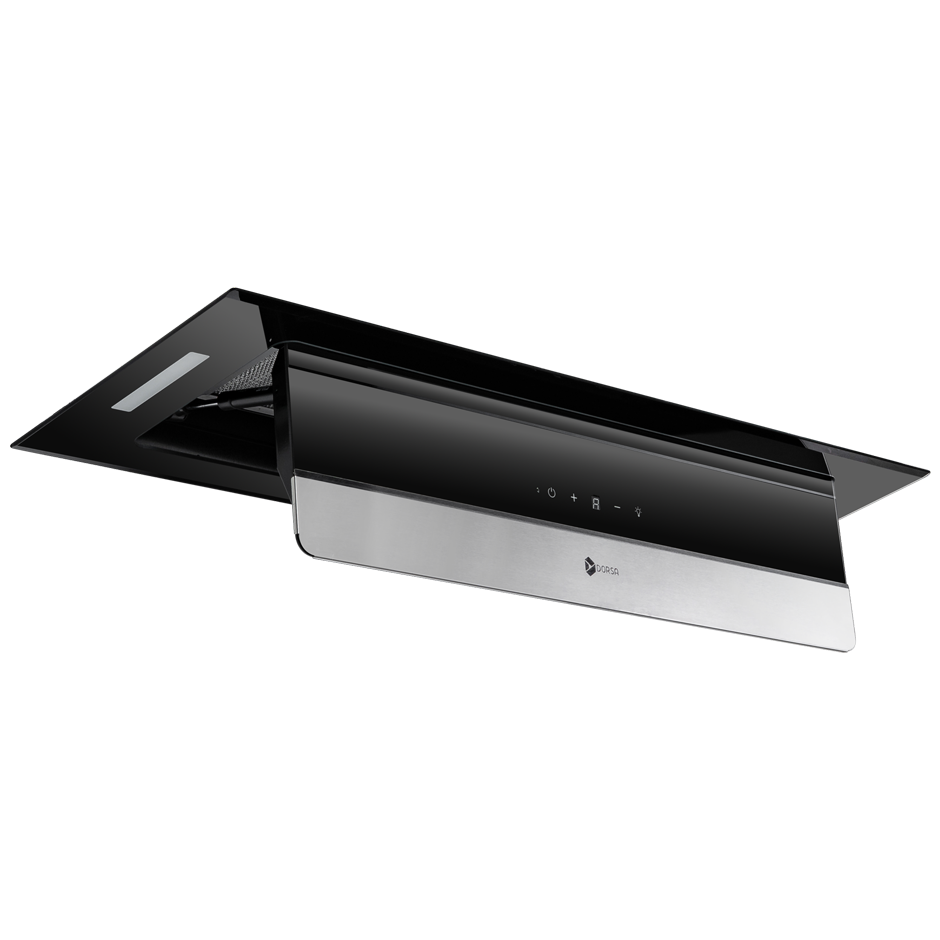

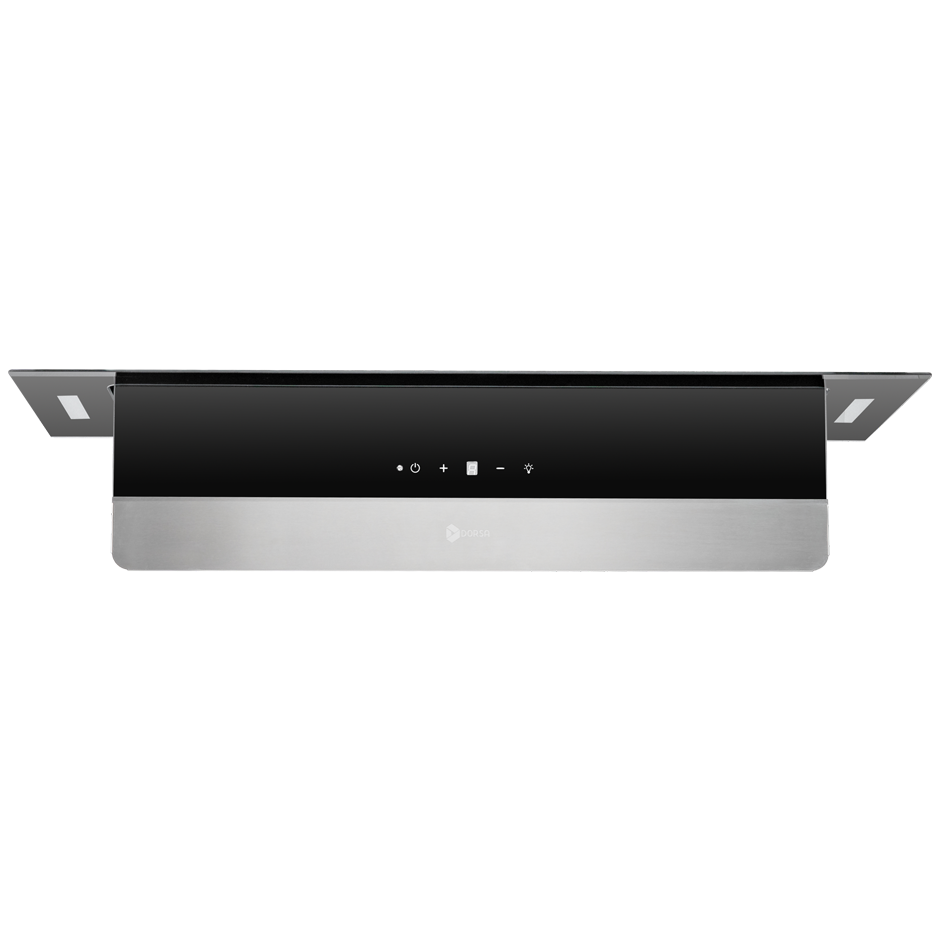

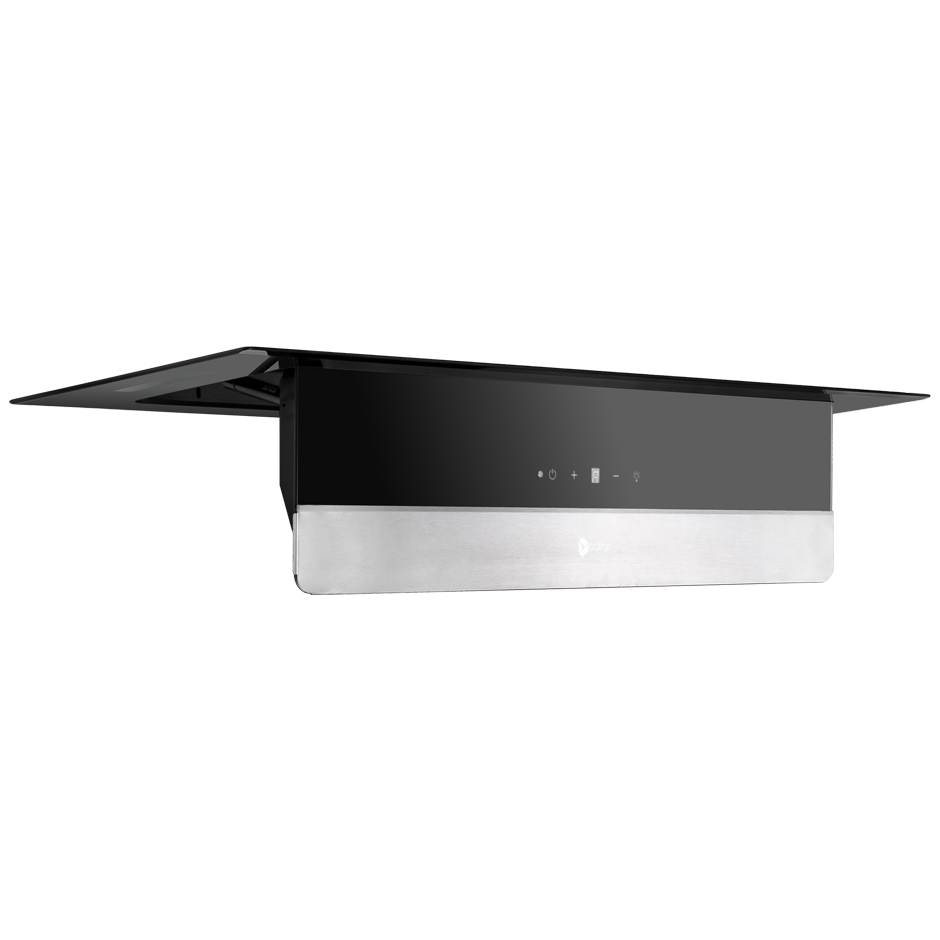

Black Door with Stainless Steel Frame

The combination of black with a stainless steel frame not only creates a stylish and distinct look but also allows it to be easily matched with other stainless steel appliances (like cooktops, ovens, or sinks), offering an elegant and unique appearance compared to all-black or all-stainless steel models.

Why is the Dorsa DH1417-80 Built-in Hood an Ideal Choice?

• Minimalist and modern design for perfect integration with cabinets.

• High build quality with automotive galvanized body and resistant tempered glass.

• Excellent suction power for complete removal of odor and steam.

• Motor safety system to increase lifespan.

• Quick and easy installation, even by the user.

• Affordable price relative to the features offered.

Installation Guide for the Dorsa DH1417-80 Built-in Hood

• Precise Cabinet Cutout: $26.5\text{ cm}\times 76.5\text{ cm}$ ($265\text{ mm}\times 765\text{ mm}$) according to the installation diagram.

• Air Outlet Path: 12 cm diameter; a short and straight path with minimal elbows for less pressure drop.

• Accurate Leveling: Level the body so that the glass door operates smoothly and quietly.

• Recommendation: To benefit from the warranty conditions and product installation and setup, the packaging must only be opened by authorized Dorsa service centers. Otherwise, the product will be excluded from the warranty.

Frequently Asked Questions (FAQ)

1. What are the exact cabinet cutout dimensions? $26.5\text{ cm}\times 76.5\text{ cm}$ ($265\text{ mm}\times 765\text{ mm}$). It is recommended that product installation be performed only by authorized Dorsa service centers to benefit from the warranty conditions.

2. Is the hood filter washable? Yes; it is a single-piece, three-layer aluminum filter with dimensions of $16\text{ cm}\times 53\text{ cm}$ and is magnetic, making it easy to remove and wash.

3. What safety feature does the motor have? The motor has a Thermoguard; it prevents damage to the motor in case of abnormal temperature.

4. What is the diameter of the chimney outlet? 12 cm. Using a same-diameter duct and a short path increases efficiency.

Summary for Purchasing the Dorsa DH1417-80 Built-in Hood

If you are looking for a quiet built-in hood with high suction power, excellent build quality, and modern controls, the Dorsa DH1417-80 built-in hood is a reliable choice for today's kitchens. Its completely concealed design, washable filter, and dual-shaft turbo motor with a Thermoguard provide a clean, quiet, and professional cooking experience.
